Barco eX Hire
Barco eX

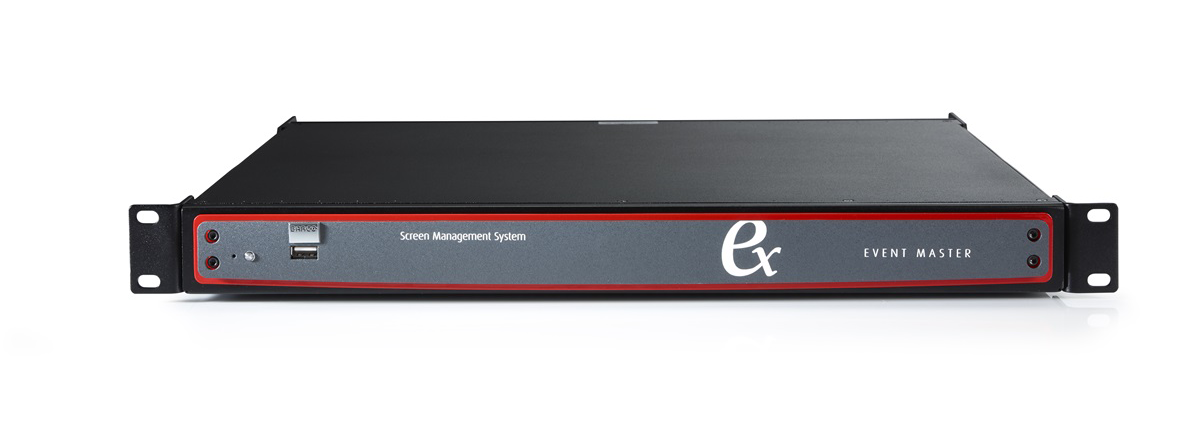

As well as the cutting edge E2 we currently offer, with a full events support package, we can now offer the event master expansion unit – eX.
Tri-Combo
Loaded with the latest 4K cards offering 1 x HDMI 2.0, 1 x DP 1.2 & 4 x SDI (3G, 6G, 12G).
We have both the TCI (input) & TCO (output) with this specification
We can also offer these cards for dry hire
Versatility
Matrix
The eX can be used (with EM-V6 & TCI/O cards) as an independent 6×6 matrix, with all the power the event master series offers through its auxiliary outs. (essentially 6 x Image Pro in a matrix)
Remote I/O
The ex can be positioned either locally to the e2/s3 via copper CXP link or we can offer both a 30m & 120m CXP fibre link, meaning you can jump feeds to & from the stage, FOH or even another room.
Fibre MTP
Our fibre link is configured with 2 x 24way MTP offering either redundancy, the ability to run up to 4x eX or a single S3 up to 120m away from the e2.
As well as this it also contains a dual LC link which we run a 1GB network switch through
meaning you get full data throughput beyond the 80M cat6 limit as recommended by Barco.
Ease

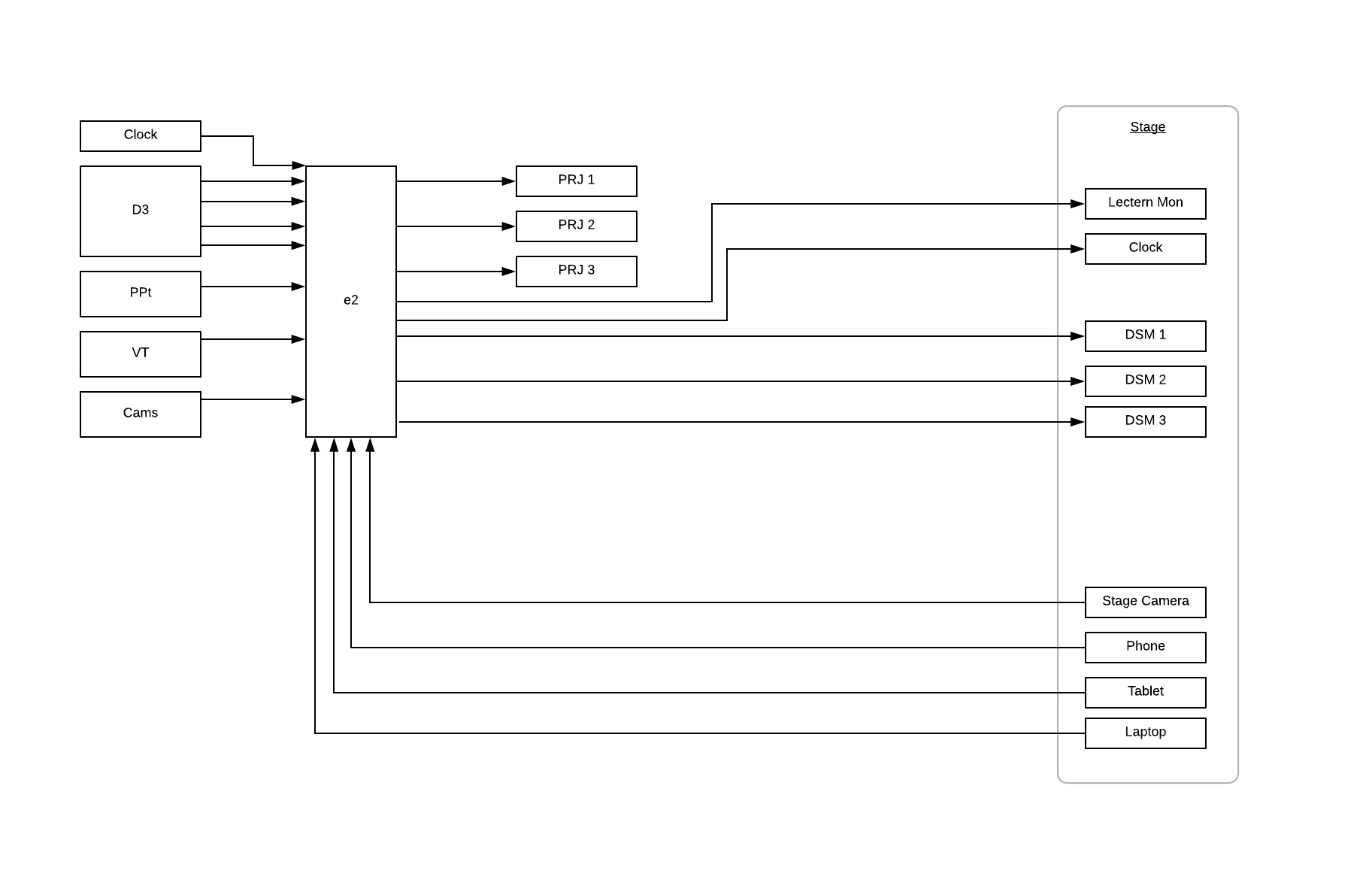

Why run 4,6 or 10 fibres to cover your stage feeds & returns, when you can run one & give the client the flexibility they’re asking for.

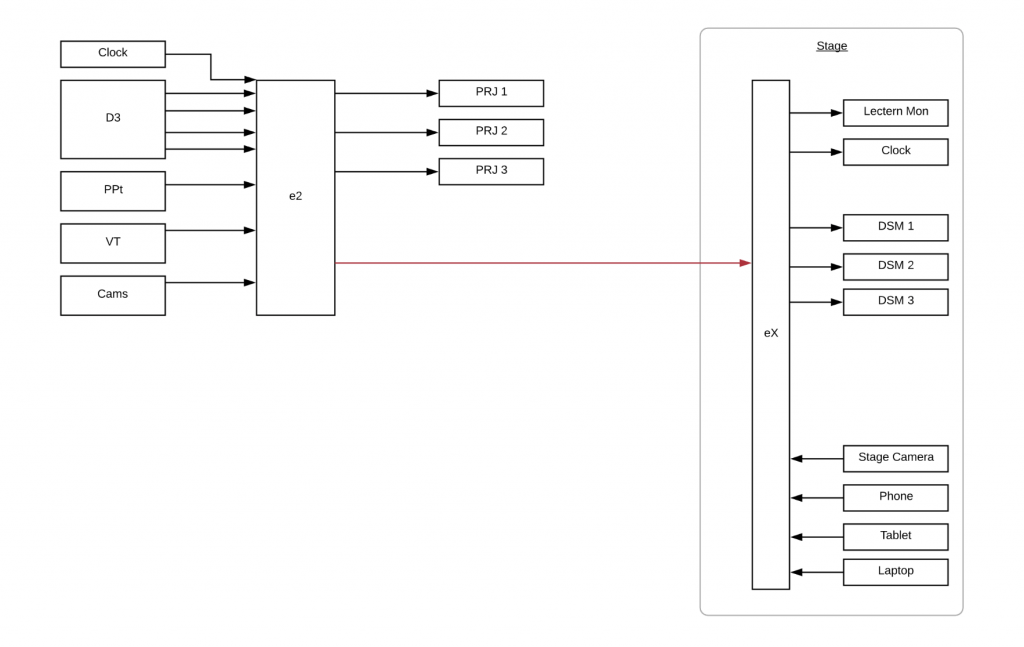

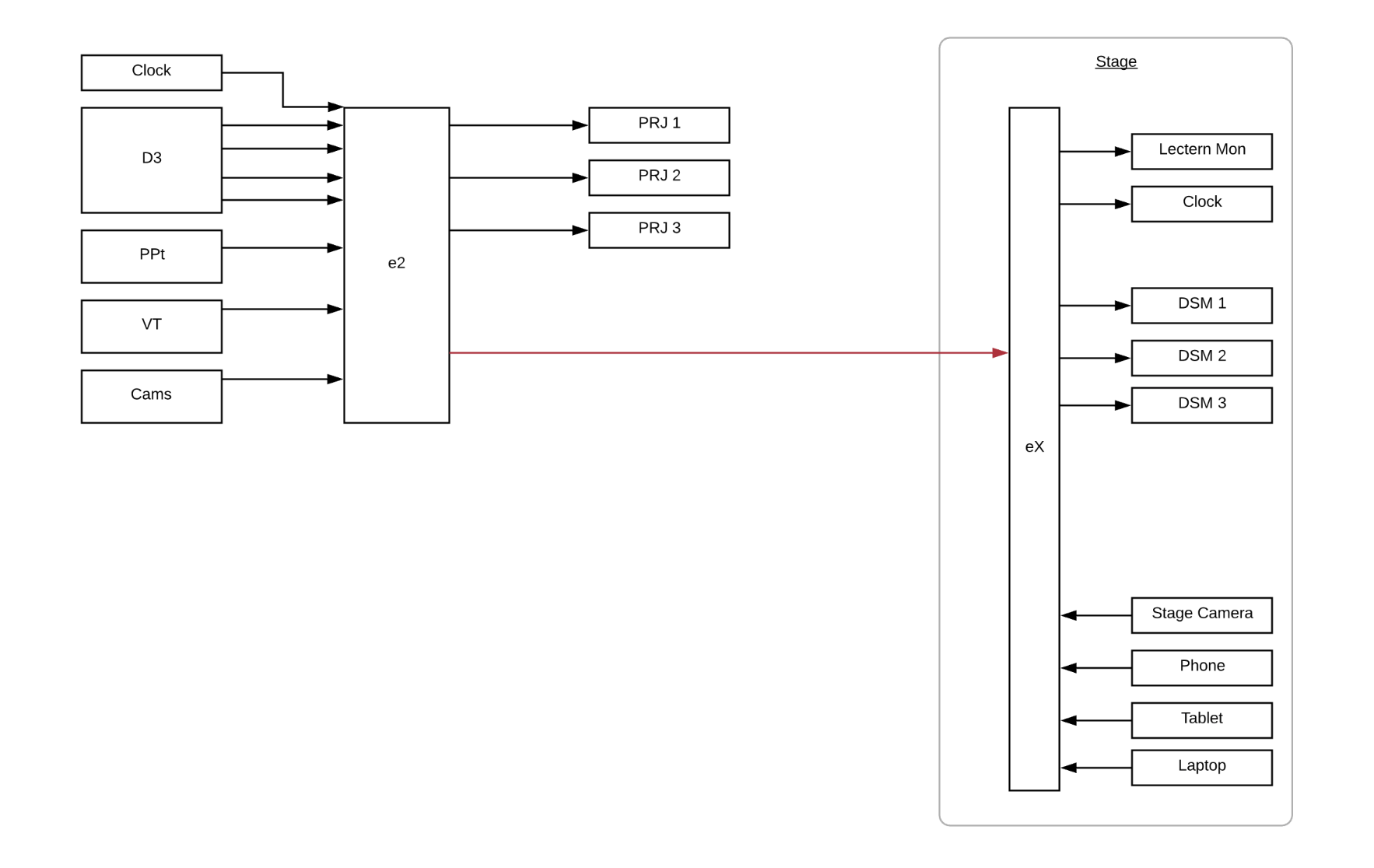

Example
Got a Lectern with a laptop & a couple of iPads on stage? Multiple comfort monitors?
Replace up to 12 long fibres with a single 120M drum mounted MTP speeding up your rig/derig, adding reliability & versatility.
Please feel free to call or email if you have questions about any of the Event Master range or would like to find out more about our latest addition to the family.
